Cobalt base alloy powder Others
Overview
1.Essential details：
Product Name: Cobalt base alloy powder Type: XYFCo25 etc.
Mesh : 53/150μm;20/53μm Hardness: 20-60HRC
Feature: Corrosion/High/Wear temperature Resistance Material: stellite, Cobalt Base Alloy
Place of Origin: China Production process: Gas atomized
Applicable Processes: PTA, laser cladding, HVOF Quality control: ISO9001 Certificate
Main application: valve seat inserts , bearing , engine valves, turbine blade etc.
2.Certificate of analysis :
Product Name | Hardness (HRC) | Chemical Composition(Wt%) | Reference Standard | Application |
|
| C | Cr | Si | W | Ni | Fe | Mn | Mo | Co |
|
|
XYFCo3 | 48-54 | 2.30 | 30.00 | 1.00 | 12.00 | ≤3.00 | ≤3.00 |
|
| Bal | AWSA5.21 ERCoCr-C | needle holders,valve seat inserts,steel mill guide roll |
XYFCo20 | 52-57 | 2.50 | 32.00 | 1.00 | 18.00 | ≤3.00 | ≤3.00 | ≤1.00 | ≤1.00 | Bal | Stellite20 | bearing sleeve,wear plate |
XYFCo25 | ≤24 | 0.10 | 20.00 | 1.00 | 15.00 | 10.00 | ≤3.00 | ≤2.00 | ≤1.00 | Bal | Stellite25 | extrusion die |
XYFCo31 | 28-34 | 0.50 | 26.00 | 1.00 | 8.00 | 10.50 | 2.00 | ≤1.00 |
| Bal | Stellite31 | extrusion die,turbine impeller |
XYFCo156 | 43 | 1.60 | 28.00 | 1.15 | 4.50 | 3.00 | 0.05 | 1.00 | 1.00 | Bal | Stellite156 | high temperature and pressure valves,hot-forging die |
XYFCo157 | 50-56 | 0.10 | 22.00 | 1.50 | 5.00 | ≤3.00 | ≤3.00 | ≤0.50 | ≤1.00 | B:2.5 Bal | Stellite157 | top of motor car valve |
XYFCo158 | 40-46 | 0.80 | 29.00 | 1.50 | 5.50 | ≤3.00 | ≤3.00 | ≤1.00 | ≤1.00 | B:0.8 Bal | Stellite158 | high temperature and pressure valves,sawteeth screw flights,etc. |
XYFCoX40 | 34 | 0.85 | 25.00 | 0.30 | 7.50 | 10.00 | 1.00 | 0.30 |
| Bal | StelliteX40 | extrusion die turbine impeller |
XYFCoT400 | 50-60 | 0.08 | 8.50 | 2.60 |
| 1.50 | 1.50 |
| 28.50 | Bal | Stellite400 | wedge gate valves at elevated temperature&corrosive environment,plastic extrusion liners |
XYFCoT800 | 52-58 | 0.08 | 18.00 | 3.40 |
| 1.50 | 1.50 |
| 28.50 | Bal | Stellite800 | wedge gate valves at elevated temperature&corrosive environment,plastic extrusion liners |
XYFCoF | 38-44 | 1.70 | 26.00 | 1.20 | 12.00 | 22.00 | ≤3.00 | ≤1.00 | ≤1.00 | Bal | Stellite F | engine inlet and exhaust valve |
Our cobalt and nickel based alloy powders are produced by advanced gas atomization and water atomization equipments-gas (high purity nitrogen) cooling technology. The alloy powders are low in oxygen, spherical and the particle size is uniform(the size can be controlled), the specifications are complete. The quality is unanimously approved by clients. Applicable processes include oxyacetylene spraying or overlaying, HVOF/HVAF spraying, Plasma transferred arc(PTA) overlaying, Plasma spraying. These powder can be widely used in high temperature and high pressure valves, valve seats, engine valves, internal combustion engines, inlet/outlet valves, gardening tools, turbine blades, bearings and hot cutting edges, etc. All these alloy powders can be customized if customers have special surfacing welding process requirements.
Product Description

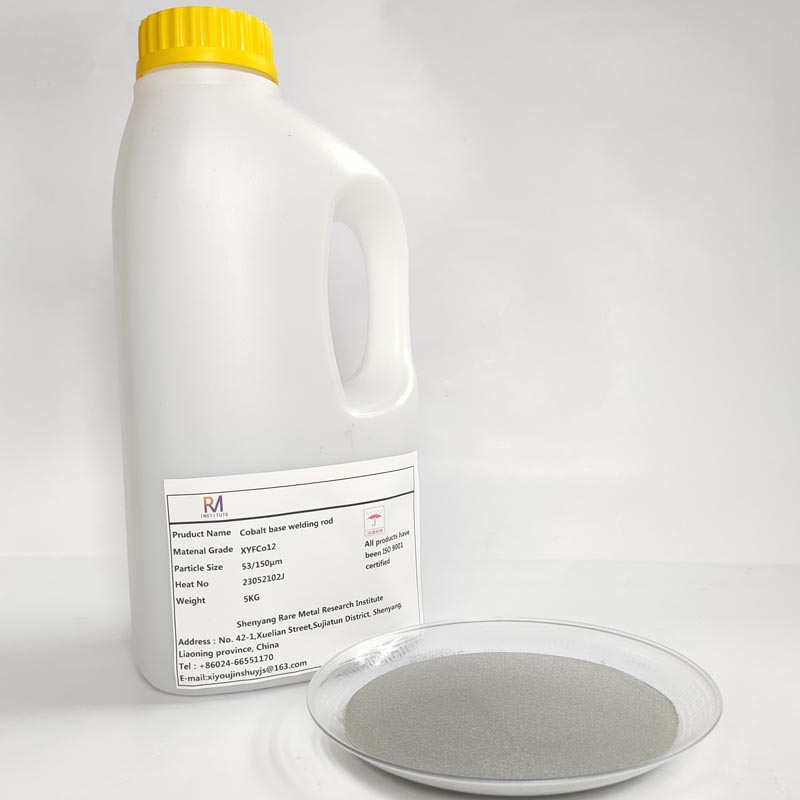

Packing Description
Application technology
laser cladding HVOF PTA 3D printing
Application fields
FAQ
Q: Are your trading company or manufacturer?
A: we are factory
Q: how long is your delivery time:
A: Generally it's 7-15 days if the goods are in stock, or it's 15-20days if goods are not in stock,it depends on quantity.
Q: Do you provide free sample? it's free or extra?
A: yes,we offer free sample, but don't pay the cost of freight.
Q: what is your payment term?
A: payment<=1000usd,100% in advance.payment>1000usd, 30%TT in advance,balance before shippment.
